Description

MG-100 Professional Electric Guitar Multi-Effects Distortion Pedal Processor Musical Instrument Parts 40s Record 55 Effect Mode 10 Sound

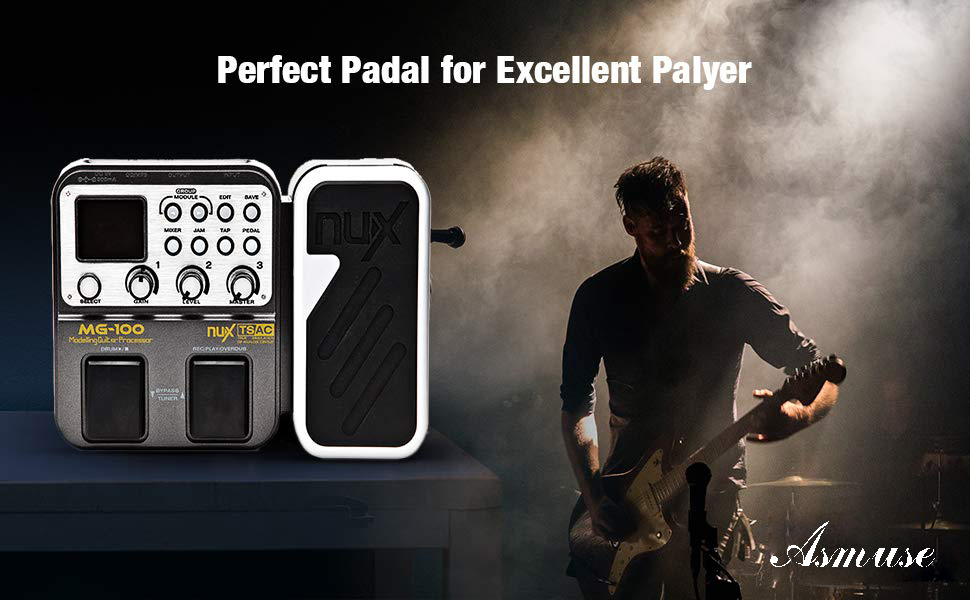

1111

Master your own music style

6-band graphic EQ designed specifically for electric guitar(120Hz,250Hz,750Hz,1.6kHz,3.2kHz,6.4kHz)
A total of 58 effects ; up to 8 can be used simultaneously
Up to 40 seconds phrase loop with sound on sound adds more playability
Built-in drum machine with CD quality PCM sounds
Large color TFT LCD panel (160 x128),graphic interface making the overall operation easy and intuitive
13 classic amp models with True Simulation of Analog Circuit(TSAC)
A total of 72 presets, 36 factory and 36 user presets.
Vintage 3-band passive EQ modeling for every amp model
11 cabinet models.Seamless and quick preset switching
32-bit DSP, high performance 24Bit 44.1kHz AD/DA converter
Powered by batteries or DC power adapter
6*AA alkaline batteries all up to 8 hours of continuous use
The transmission distance is about 30 meters
Used in electric guitars,bass and acoustic products

Specifications

Display: 160 * 128 QVGA TFT LCD
Jacks: INPUT, OUTPUT, AUX IN, DC IN
Input: -20dbv 1Mohm
Output: -10dbv (output load impedance of 10k or more)
Adapter input: 230V-50Hz 100mA
Adapter output: 9V-500mA 4.5VA
Headphones: 20mW+20mW (into 32Ω load)
AD/DA converter: 24-bit
Power: 9V DC, 300mA, ACD-007A (pin negative)
Dimensions: 22.5 * 15.5 * 5 cm/8.9 x 6.1 x 2 inches
Product weight: 697 g / 24.5 oz/1.54 lb

Package Included

1 x MG-100 Multi-Effects Processor(without battery)

Beaspire NUX MG-100 Main Function

1.PRESET:FOOT SWITCHES
press one to select presets,Press both to enter turning mode
2.EXPRESSION PEDAL
A rea-time control of volume,wah or assigned effect parameter
3.MODULE BOTTONS
press one of them to step through the modules
4.SAVE BUTTON
Save the tone setting you created
5.TAP BUTTON
Set the overall tempo,allow you to syc the delay time to the tempo of the song
6.DISPLAY
HD Screen provides different information of selected to make your operation more convenience
7.EDIT
Press this botton to switch between LIVE and EDIT mode
8.JAM
ON and OFF the built-in drum and loop machine modes
9.MIXER
The mixer mode is recommended when it is directly connected to a recorder,a hi-fi system.headphones or other audio device
10.SELECT
Be able to choose effects for each module switch to different modes
11.KNOB1-3
Knob1 adjusts the parameters of the effect in the module;knob 2 adjusts in LIVE mode,and knob 3 adjusts the master volume
12.PEDAL
Assign to the expression pedal

Beaspire NUX MG-100 Main Function

The INPUT Jack also acts as a power switch the plug will be connected/disconnected when the INPUT jack turn on/off
Connect the input of the guitar amp to the OUTPUT Jack,or inputs of 2 guitar amps to the OUTPUT jack with Y cable
You can also connected stereo headphones to this jack.For proper frequency response,make sure that the MIXER function is enabled when using headphones
AUX IN can mixture the effect with the MP3/CD document

Large HD Screen (160 x128), graphic interface making the overall operation easy
